Product Description

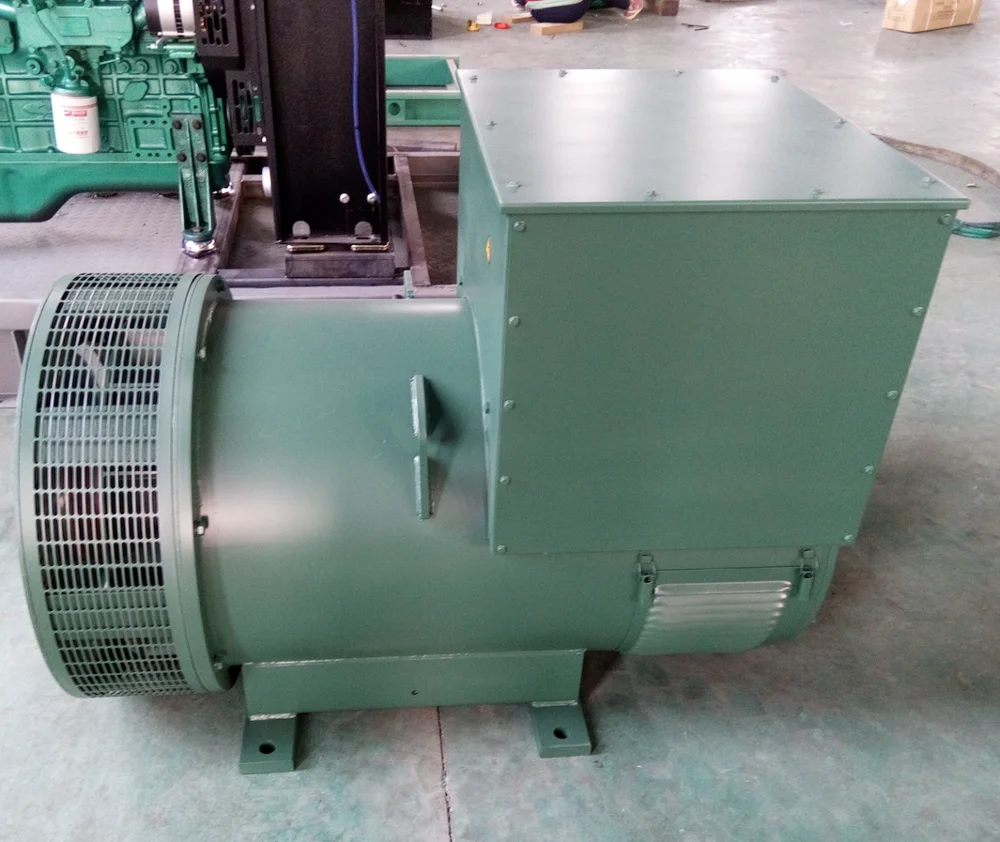

Alternator |
Brand | Beidou alternator |
Model | BDI300 |
Prime Power | 300kw |
Voltage | 120-690V |
Connecting Type | 3 Phase and 4 Wires |
Number of Bearing | single |
Protection Grade | IP23 |
Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
Insulation Class | H |
Telephone Influence Factor (TIF) | ≤50 |
THF | ≤2% |
Voltage Regulation, Steady State | ≤±0.5% |
Transient State Voltage | ≤-15%~+20% |
Manufacturing Standard | ISO9001,ISO14001, BS5000#3 VDE0530, NEMA MG1-22, IEC34, CSA C22-100, AS1359 |
Spec details:
2/3 Pitch winding as standard to avoid excessive neutral currents
Single or two bearings construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
Standard maintenance-free sealed bearing
IP23 as standard or higher class for optional
Standard MX321 AVR and PMG Excitation
3 Phase sending detection and + 0.5% voltage regulation.
Accessories:
-Winding temperature sensor RTD
-Thermal resistance and winding temperature protection relay
-Anti condensation heates
-Air filters
-Quadrature droop kit for parallel operation
-Rfi suppression to ec standards
-Power factor control module (PFC3)
-2 pipe damage detection module
-Fall excitation protection
-Manual voltage regulator
-Resistance temperature detector RTD
-Grease lubricated bearing
-IP 44 for option
AVR
1. The main stator provides power for excitation of the exciter field via AVR
2. Output power of exciter's rotor is input to that of mains through 3phase full wave rectifier. Two ends of the rectifier are
3. Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel
synchronization loss.
4. Exciter's Stator is equipped with permanent magnetic steel, it can make generator starting smoothly in any occasions.
5. Voltage regulation (0.5 %) and low frequency protection, exterior voltage adjustment of SX440, MX341 and MX321 suitable
for the generator with permanent magnetic generator (PMG).
FEATURES:
1. Any permanent magnetic generators, providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3. Balanced rotor with single or two sealed ball bearings
4. Wide range of Flange adaptor and single bearing coupling disc
5. All industrial standard generators is IP 23.




Packaging & Shipping

Payment Terms: T/T,30% deposit, 70% before shipment;
Delivery time: 7 calendar days after receiving the deposit;
Warranty:One year(1,000 running hours for the alternator) ;
Packing: by poly bag/carton(standard) or poly wood box(with extra charge).
Our Services

All of our generators are well tested befre shipping. and we have different types of engines and
alterator on stock, in case for any urgent orders.

We're working closely with engine manufactures, and we can get you any spare parts that you need for your generators.
Anything you say it, and we can get it for you.
FAQ
1. Q: Are you a factory OR a trade company?
A: We're a diesel generator set manufacture in China, try to sell our gensets worldwide.
2. Q: Where is your factory located?
A: Our factory is located in Daqiao Industrial Area,Jiangdu district, Yangzhou,Jiangsu province,China.
Close to Shanghai port and Ningbo port.
3. Q: What are your main products?
A: 1.5kw to 10kw portable diesel generator set, 10kw to 2000kw diesel generator set, and spare parts for engines, gensets.
We manufacturing our own brushless alternator, and gained a great comment in recent years.
We also have small turbine wind generators, and water turbine generators.
4. Q: What we can supply?
A: We mainly produce diesel generator sets and alternator from 2kva to 2500kva. All most all the common used diesel engine brand in world wide market are avaliable and of course we also supply many good Chinese brands. For alternator, we really suggest our own brand Beidou, which is 100% copper and brushless and acclaimed by our customers. In one sentence, we will try our best to meet your requiremets.
